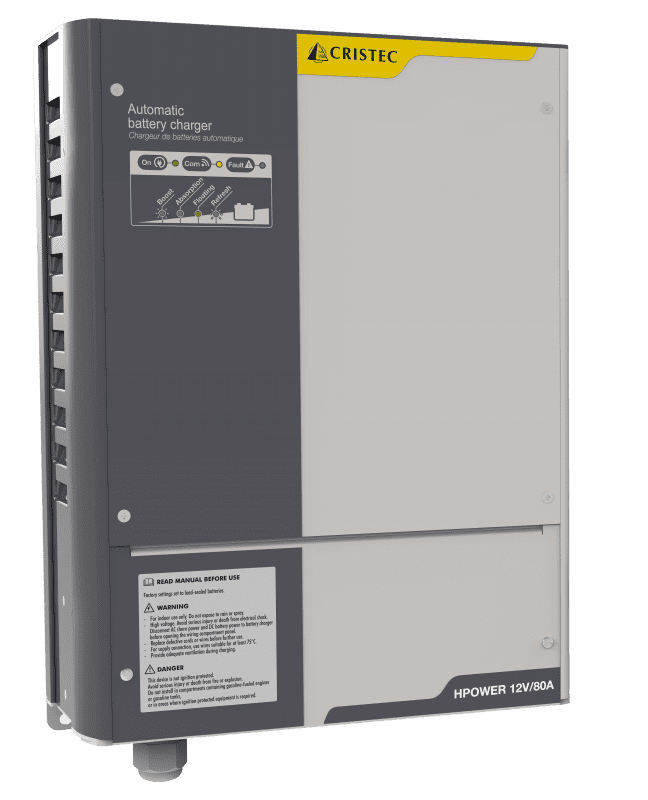

HPOWER range – Innovative battery chargers

Specialized in the design and manufacturing of automatic battery chargers for more than 30 years, CRISTEC is launching high quality battery chargers for the toughest conditions for professional and recreational purposes : HPOWER.

This new generation of battery chargers is designed to replace very popular CPS3 range. Available models will be : 12V/90A, 24V/45A, 24V/60A, 24V/80A, 24V/100A as well as some 48VDC and 3-phase units.

With CRISTEC HPOWER battery chargers you are assured of unrivalled efficiency, ruggedness, flexibility and battery life increase. Fully AC universal equipped and suitable for every type of battery including Li-Ion, they operate at full power up to 50°C without derating.
Internal circuit boards have been specially designed and coated to withstand to adverse environment : heat, humidity and salt air.

A CAN BUS interface is available as well as temperature compensation and remote touch-screen control panel. Some approved models will be also offered.



Availability :
Models 24V/45A, 24v60A & 24V/100A: available
Models 24/80A and 12/90A: T1 2019

Performances

  • 5-stage charging profile to ensure fast and complete charging, power-supply mode available
  • Full power up to +50°C ambient with no derating allowing rated charge for intensive use in hot or confined place
  • 3 isolated battery banks, with no current limitation
  • Suitable for all battery types : flooded, Lead-sealed, Calcium-Lead, AGM, gel, Lithium, etc.
  • Increased battery life

Worldwide use

  • 90-265VAC/47-65Hz auto-ranging
  • Rated operation regardless the available AC voltage including from a genset
  • Memory function : in case of unstable AC network the charger will not reset to prevent battery overcharging
  • Best in class protection : removable fuses and varistor, coated circuit board for marine environment, automatic burn-in test
  • UL-1236 and CSA 22.2-107.2 standards compliant (pending)

Ergonomics

  • Lightweight rugged Aluminium casing with special coating for marine environment
  • Optimal accessibility : specific secured connection compartment
  • Readability comfort Dedicated LEDs and icons on the front

Applications

HPOWER AC-DC battery chargers adapt to different markets and applications:

  • Professional marine : naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse and beacon.
  • Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
  • Mobile :
    • Emergency vehicles : firemen, ambulance, rescue, depollution, etc.
    • Recreational vehicles : motorhome, golf course, etc.
    • Special vehicles : surveillance, transport of animals, Van, public works etc.
  • Industry : automated cleaning, on-board camera, recognition robots, telecommunications, etc.
  • Wind-powered : landsites
  • Solar : isolated sites

Functionalities

…

Download our data sheet for more information!

DNV-GL Certification

With optional touchscreen display and integrated relays boards (in progress).

Accessories

Touch-screen control panel - YPO-HPO-Display-R
HPO-DISPLAY-R touch-screen control panel

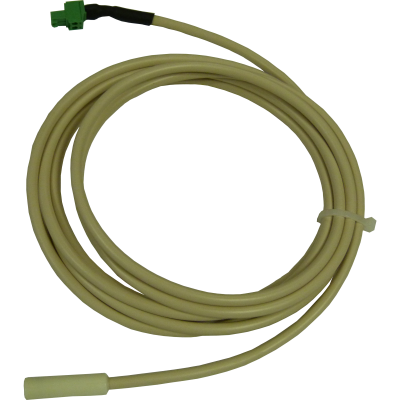

HPOWER battery chargers accessories - STP-NEW-2.8 temperature probe
HPOWER battery chargers accessories
On-off from a distance, temperature sensor
  • New generation
  • Robustness
  • Unmatched performances
  • Adaptability
  • CAN & LIN BUS Interface

Downloads

Data sheet
User manual
