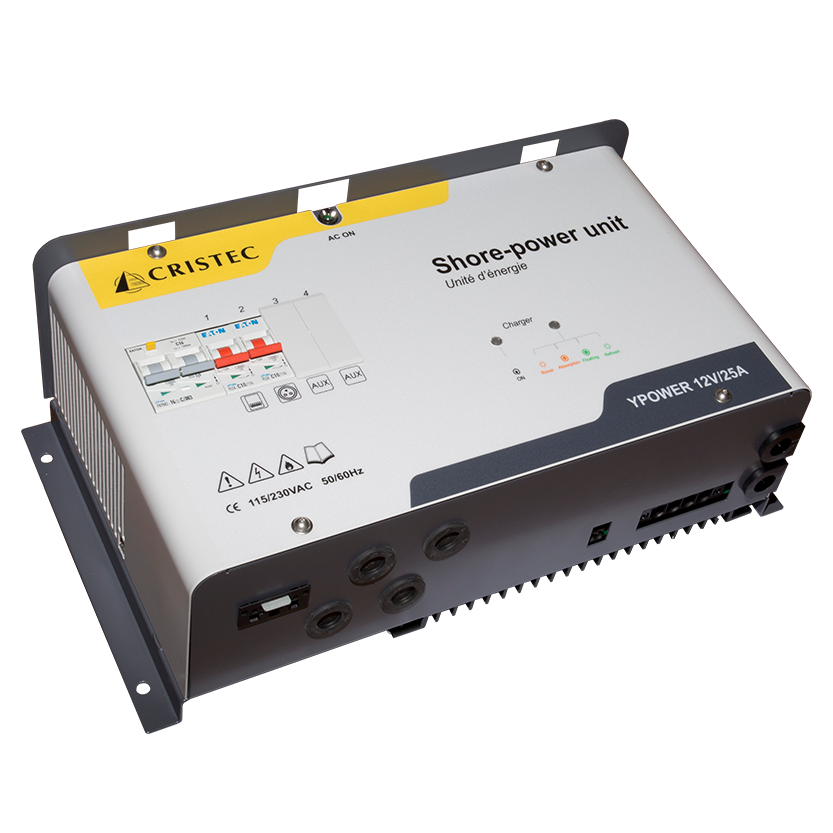

YPOWER shore-power units

12V/16A, 12V/25A & 12V/40A

CRISTEC YPOWER shore-power units combine AC distribution system & automatic battery charger in a single cabinet.

The 12V charger is a brand new YPOWER model available either in 16, 25 or 40A with 3 fully isolated banks.

It operates from 90 to 265VAC, 47 to 65Hz and delivers a smart 5-step charging curve for all battery types including LiFe PO.

High temperature efficient the charger delivers rated charge up to +60°C without derating.

Entirely silent as fanless the unit integrates a 16A/30mA RCD double pole main breaker and 2 single pole breakers 10A (more as option).

The AC and DC connectors meet worldwide highest quality and safety standards.

Designed and manufactured in France the product as a standard 3 year warranty.

A remote colored tactile display is available as option to monitor battery voltage and temperature, charger current, AC voltage and frequency as well as possible alarms.

Voltage

  • The 12V charger is a brand new YPOWER model available either in 16, 25 or 40A with 3 fully isolated banks.
  • It operates from 90 to 265VAC, 47 to 65Hz and delivers a smart 5-step charging curve for all battery types including LiFe PO.

Silent

  • Entirely silent as fanless the unit integrates a 16A/30mA RCD double pole main breaker and 2 single pole breakers 10A (more as option).

Accessories

  • A remote colored tactile display is available as option to monitor battery voltage and temperature, charger current, AC voltage and frequency as well as possible alarms : YPO-DISPLAY-R
  • A 2.8m or 5m temperature sensor : STP-NEW-2.8 – STP-NEW-5.0.
  • A charger ON/OFF remote control : G-ON/OFF-R

High-performance in over-temperature

  • The charger delivers rated charge up to +60°C without derating.

Applications

YPOWER shore-power units adapt to different markets and applications:

  • Professional marine : naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse and beacon.
  • Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
  • Mobile :
    • Emergency vehicles : firemen, ambulance, rescue, depollution, etc.
    • Recreational vehicles : motorhome, golf course, etc.
    • Special vehicles : surveillance, transport of animals, Van, public works etc.
  • Industry : automated cleaning, on-board camera, recognition robots, telecommunications, etc.
  • Wind-powered : landsites
  • Solar : isolated sites



    Downloads

    Data sheet
    User manual unit
    User manual display

    ACCESSORIES

    HPOWER battery chargers accessories - STP-NEW-2.8 temperature probe
