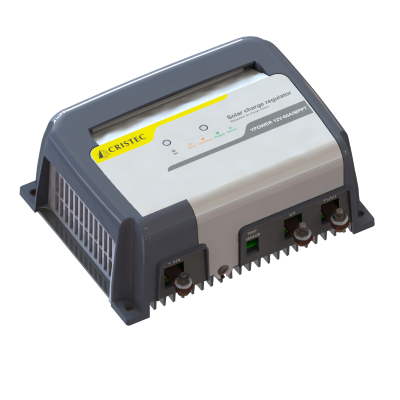

YPOWER MPPT solar charge regulators

12v 60A & 24v 30A

YPOWER fanless solar charge regulators are designed for installations in 12 or 24V, medium & high power.

MPPT technology (Maximum Power Point Tracking) increases the efficiency of solar panels enabling to recharge batteries faster.

Thanks to a charge regulation similar to a smart battery charger, it matches all battery types : wet & sealed Lead, Calcium Lead, gel, AGM, Lithium, etc.

Input voltage detection is not automatic to avoid any major malfunction in the event of a faulty output battery.



Cooling is done naturally.





Remote control can be done through a serial BUS-CAN interface.

Mechanical characteristics

  • Input/output connection : with M6 connectors
  • Indicator : 2 bicolour LEDs
  • Casing : 4 x M5 external fixings for easy wall mounting
  • Natural cooling (fanless)
  • Protection factor : IP22
  • Dimensions : 236 x 180 x 96 mm
  • Weight : 2.2 kg

INPUT/OUTPUT CHARACTERISTICS

  • Input voltage : 10 to 45VDC or 10 to 80VDC according to models
  • Output voltage : 12 or 24VDC (from 0 to 32VDC)
  • Nominal power : 800W
  • Max. output current : 20 to 60A  according  to models
  • Isolation Input/Output : no as 0V is common
  • 5-step charging curve : Boost, Absorption, Floating, Refresh & Reboost
  • Battery type selection through push-button or CAN-BUS
  • Efficiency : > 96%
  • Ripple : < 1%
  • Remote control : serial CAN-BUS interface

Applications

YPOWER DC-DC  battery chargers adapt to different markets and applications:

  • Professional marine : naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse and beacon.
  • Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
  • Mobile :
    • Emergency vehicles: firemen, ambulance, rescue, depollution, etc.
    • Recreational vehicles: motorhome, golf course, etc.
    • Special vehicles: surveillance, transport of animals, Van, public works etc.
  • Industry : automated cleaning, on-board camera, recognition robots, telecommunications, etc.
  • Wind-powered : land sites
  • Solar : isolated sites

PROTECTIONS

…

Download our data sheet for more information!

  • MPPT technology
  • High power
  • 12 & 24V
  • Silent
  • CAN-BUS interface

Downloads

Data sheet
User manual
