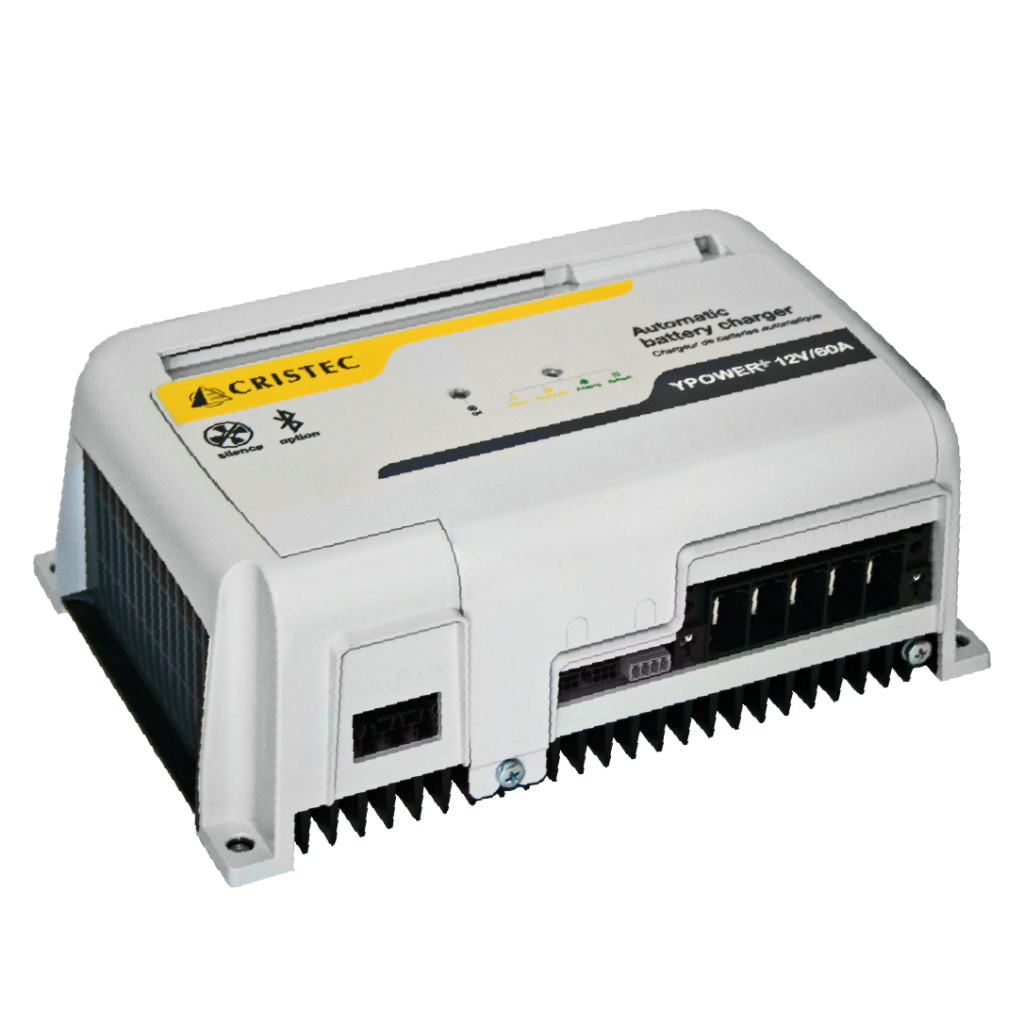

battery charger

Specialist in chargers for more than 30 years, CRISTEC is proud to offer you its brand new models.

They have all the advantages of the YPOWER range plus :



    A completely silent operation (fanless)



3 or 4 independent outputs depending of models



           Low energy bluetooth



        A CAN-BUS interface



      A compact casing  and plug & play



        A rated charge without loss up to + 60 °C

SILENT OPERATING

CRISTEC is the only manufacturer offering chargers up to 12V 70A with natural convection (without fan). This advantage gives the YPOWER+ chargers a completely silent operation and an optimized lifespan. It is therefore possible to install them anywhere on board, including under a berth.

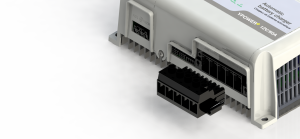

3 or 4 independent outputs

The YPOWER+ chargers are the only chargers which have up to 4 independent and non-limited outputs.

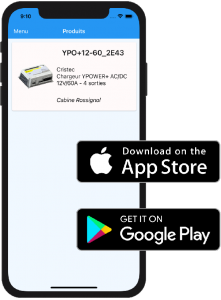

Low energy bluetooth

The YPOWER+ chargers are equipped with a Bluetooth Low Energy (BLE), variant of “classic” Bluetooth. The major advantage of BLE is its low power consumption as it consumes half the power of a classic Bluetooth.



Remote control

The chargers are fitted with a CAN-Bus and a Bluetooth interface as standard.
Connection to an NMEA network is also available through an optional adaptor.

NMEA

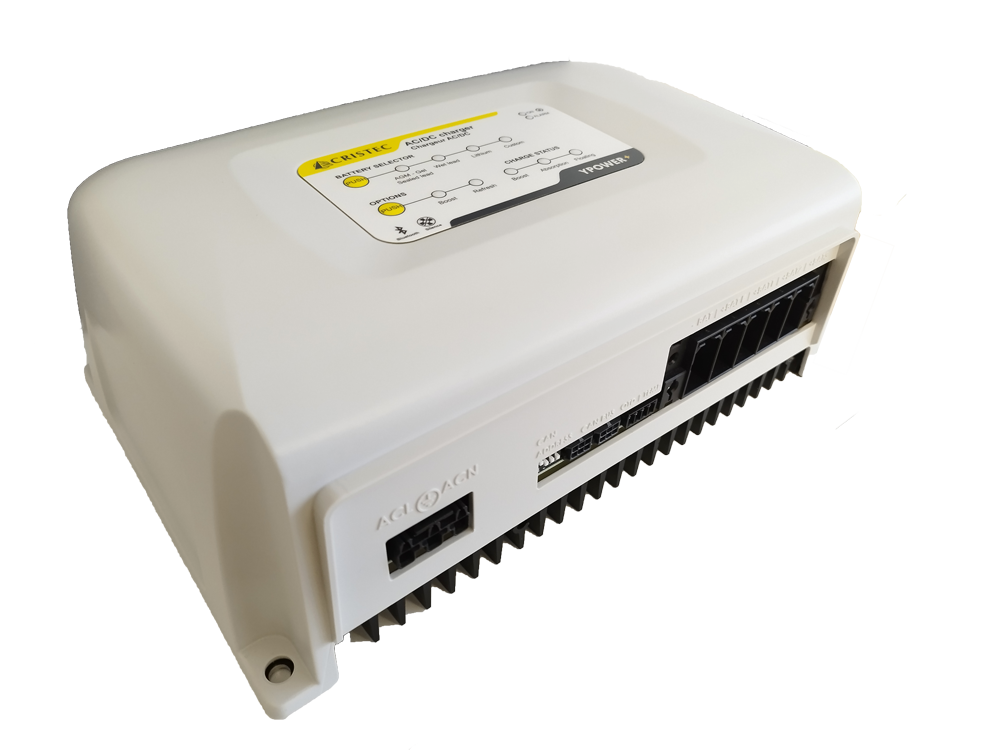

COMPACT BOX

The  chargers are integrated in a compact box.

5-stage charging profile

Boost : charges batteries to 80% of full charge
Absorption : slowly completes remaining charge to 100%
Floating : maintains battery charge
Automatic refresh : prevents sulphation and revitalizes batteries, selectable by internal switch
Reboost : new automatic Boost phase if batteries demand needs it.

Power-supply mode also available.

IU mode by inhibiting the BOOST using internal switch.

Thermal Performance

  • Rated charge up to +60°C with no derating
  • can be installed in an engine room thanks to Ignition protection according to standards SAE J1171 and ISO8846

Adaptative charge



Presence of a custom-made and simultaneous recharge of 4 battery banks, including one dedicated to the motor battery.

The chargers are compatible with all types of batteries:

  • Opened classic lead
  • Sealed, Gel or AGM
  • Spiral sealed
  • Lithium Iron Phosphate ( LiFePO4 ) with BMS

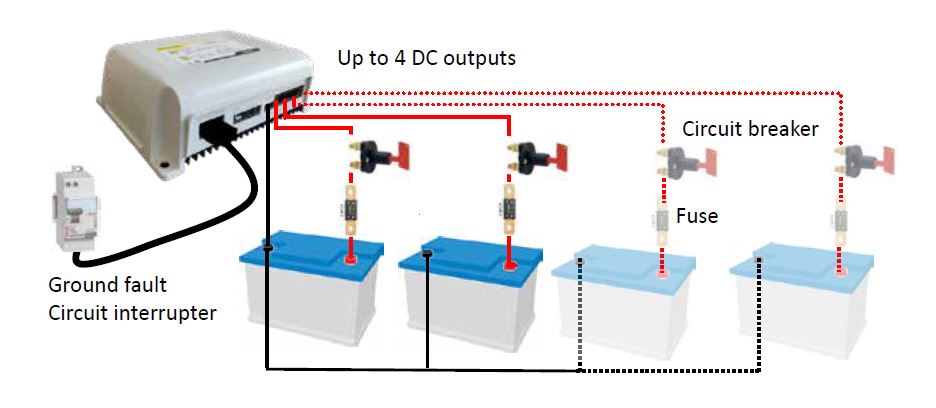

Typical installation

8_9-EN

Downloads

Data sheet
User manual
Bluetooth manual
