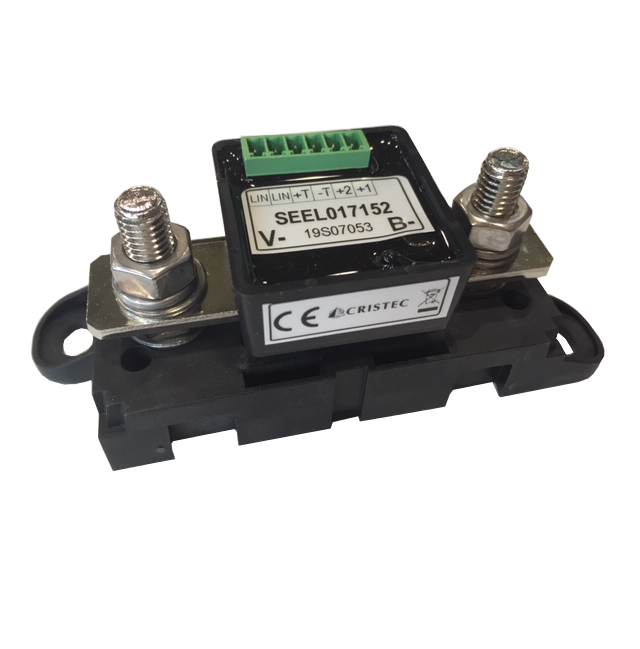

Shunt CAN-BUS interface FLEXCAN

Shunt CAN-BUS interface FLEXCAN

FLEXCAN shunt is an autonomous device which, thanks to its integrated BUS-CAN interface, allows multi-voltage use 12V – 24V – 48V(1), as well as compatibility with all types of batteries including Lithium.

FLEXCAN shunt gives access, thanks to its BUS-CAN interface, to a whole series of relevant data concerning the battery to which it is connected: voltage, current, temperature, capacity and duration of remaining autonomy of the battery or even the number deep charge and discharge cycles, etc.

It also allows voltage reading of an additional battery (2).

(1) Also works in 36V

(2) No additional battery voltage reading in 48V

Garantie-2-ans

    Downloads

    Data sheet
    User manual
    Read More

    Displays for chargers

    • All
    • Displays for chargers
    • UNI-DISPLAY display
    Touch-screen control panel - YPO-HPO-Display-R
    Read More
    Touch-screen control panel - YPO-HPO-Display-R

    UNI-DISPLAY-R touch-screen control panel

    UNI-DISPLAY-R Touch-screen Control Panel

    CRISTEC proposes a brand new touch-screen control panel compatible with all AC-DC HPOWER battery chargers, as well as with YPOWER DC-DC battery chargers and MPPT solar charge regulators.

    Color and tactile, it has a high-definition reading facade (4.7 by 3.7cm).

    It displays in real time data about the battery’s charging and the charger’s AC input power :

    • Battery voltage (up to 3 banks)
    • Charger current
    • Charger state (Boost, absorption, Floating)
    • Battery room temperature (if optional temperature probe mounted)
    • AC input network voltage and frequency

    The system will monitor data and will automatically trigger visual alarm for :

    • Low battery voltage (up to 3 banks)
    • High battery voltage (up to 3 banks)
    • Over-temperature in battery room (if optional temperature probe mounted)
    • Low AC input voltage
    • Low AC input frequency

    The screen brightness will be adjustable: night/day mode.

    Available from the CRISTEC distribution network.

    Downloads

    Data sheet
    User manual
    Read More

    BAT-MON battery monitor accessories

    BAT-MON battery monitor accessories



    CRISTEC proposes a wide choice of accessories for optimal use of our BAT-MON battery monitor.

    Downloads

    Data sheet
    Read More

    BAT-MON-3.5-3 battery monitor

    BAT-MON-3.5-3 battery monitor

    Brand new CRISTEC’s advanced battery monitor BAT-MON for most demanding users. For up to 3 battery banks or power generation (DC source) with 3 additional battery voltage readings (1).

    It operates at 12, 24, 36 and 48V and is suitable for all types of batteries, including Lithium.

    The battery monitor BAT-MON shows all relevant standard data such as voltage, current, remaining capacity and time of the service battery plus one additional voltage for starter or bow battery at the same time.

    Moreover the battery monitor BAT-MON records history data of your battery such as average discharge depth, unavailable capacity and number of charge/discharge cycles.

    An active high-precision 300A shunt unit is provided as standard for battery control. Two extra ones can be used as option.

    For each used shunt an additional voltage measurement is also available (i.e. bow-thruster battery).

    A CAN-BUS interface shunt is also available (Reference FLEXCAN).

    (1) No additional battery voltage reading in 48V

    Presentation

    • High resolution, energy-saving back light LCD display

      • Dimensions : L 105 x H 105 x D 40 mm

      • Cut-out : 88 x 88 mm

    • Adjustable nominal battery voltage

    Technical characteristics

    • 1 active shunt 300 A as standard.

    • Dimensions : L 119 x H 44 x D 43 mm

    • Connection : M 8 bolts

    • 1 internal potential free contact : to activate a mono- or bistable relay

    Videos

    Garantie-2-ans

      Downloads

      Data sheet User manual Installation diagram

      Accessories

      Read More
      JBNUM-II battery monitor

      JBNUM-II battery monitor

      JBNUM-II battery monitor

      CRISTEC presents its battery control accessory: the JBNUM-II battery monitor.

      The CRISTEC battery monitor is the only one on the market with a large graphic LCD display for optimum data reading: 62 x 44 mm (built-in backlight). Its version includes a 250A shunt to simultaneously control the voltage, amperage and remaining capacity of a battery bank (i.e.: servitude) as well as the voltage of two other battery banks (i.e., starting and thruster).

      The batteries can be in 12, or in 24 or in 48V, see mixed.

      By adding optional shunt kits it is possible to fully control 3 battery packs simultaneously (or the flow of power sources such as a wind turbine or solar panels – voltage & current) and 2 extra battery packs. This new battery gauge features an alarm that triggers when the preset low battery capacity threshold is reached and a dry contact for automatic control of a generating set.

      Presentation

      • The following parameters can be set :
        • Number of battery banks (or DC sources) to monitor
        • Capacity of each battery bank (Ah)
        •  Alarm values (low capacity, low voltage and high voltage)
        • Acoustic alarm (buzzer) and electrical contact ON/OFF
        • Language (French or English)
        • Backlight duration

      Technical characteristics

      Input nominal voltage

      •  from 8,5 to 60VDC

      Consumption

      •  without backlight /30mA ; with backlight /65mA

      Battery or DC source

      •  from 5 to 4000Ah

      Measurements

      Battery or energy source voltage : from 0 to 60VDC

      Current : from -500A to 500A

      Download our data sheet for more information!

      battery monitor JBNUM-II

        Downloads

        Data sheet User manual

        Accessories

        JBNUMII battery monitor - kitshunt 250A
