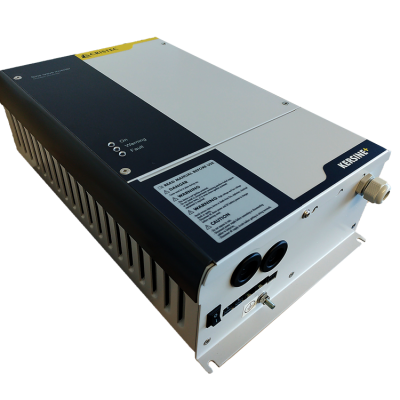

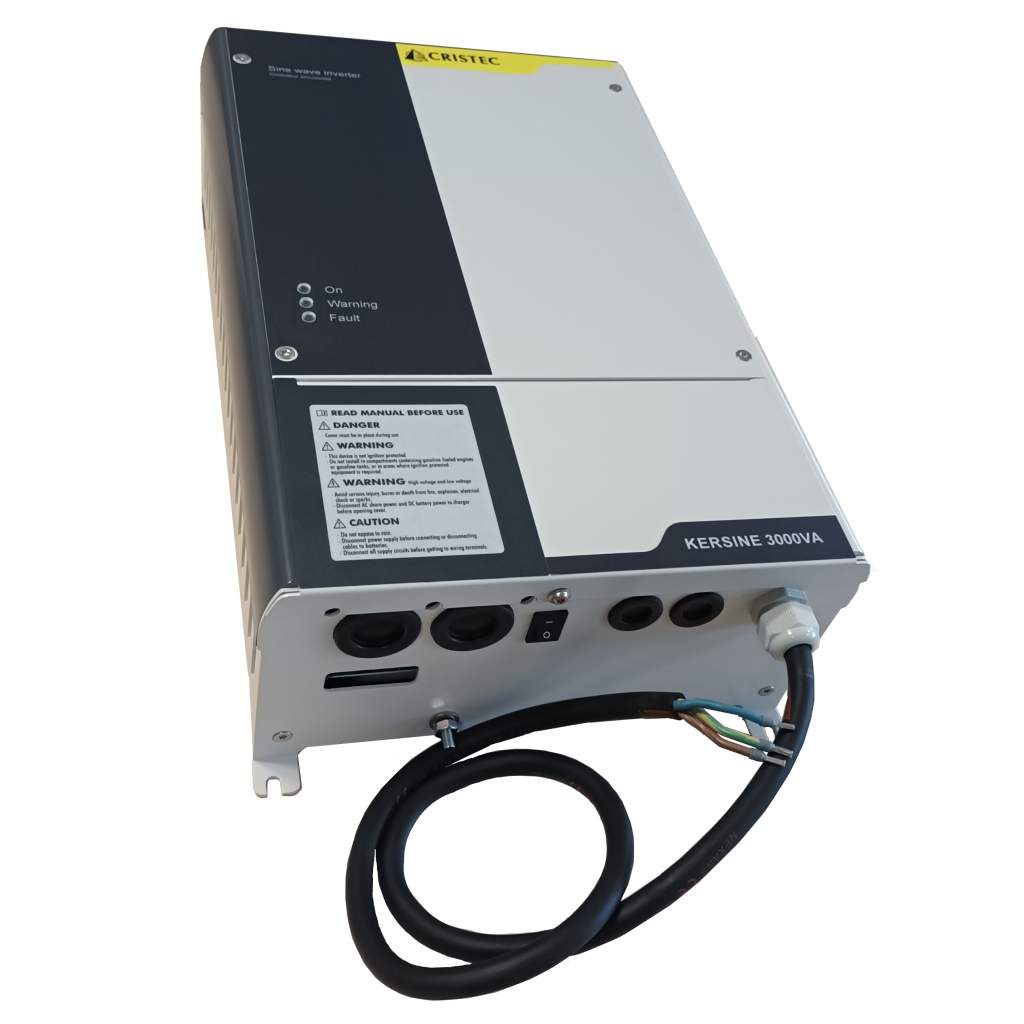

DC-AC INVERTERS KERSINE+
Developed for professional use, in harsh environments, KERSINE inverters offer up to 3,6kVA power. Thanks to their High Frequency technology
they are lightweight and they offer compact dimensions which are suitable for the widest range of applications.
Optional built-in relay board allows to switch automatically to AC shore-power or genset.
CARACTÉRISTIQUES GÉNÉRALES
High power
They are powerful enough to sustain high-power
AC devices consumption (microwaves oven, coffee
machine, hair dryer, etc.).
Bluetooth interface
KERSINE+ is equipped with a Bluetooth Low Energy (BLE), variant of “classic” Bluetooth. The major advantage of BLE is its low power
consumption as it consumes half the power of a classic Bluetooth.
No derating
They deliver up to 3.6kVA, regardless of the type
of device connected.
Pure sinewave
Thanks to their sinusoidal signal without harmonic distortion, your devices are protected and energy loss is reduced.
30A relays board (option)
KERSINE+ inverters have built-in alarms and protections. An optional 30A relay board enables automatic source switching between AC mains, generator, and battery.
Easy and robust installation
Installation is simple : connection through detachable terminal blocks, faston lugs, and ring lugs.. Because of its HF technology Kersine+ is very light (3 or 4 times lighter than low frequency
technology).
CAN-Bus interface
A serial CAN-Bus interface allows control and
configuration of KERSINE+ inverters in real time.
Parallel mounting
The inverters can be parallel-mounted to increase the output power to a maximum of 14kVA (4 units). Three-phase operation is also possible (with 3 units).
